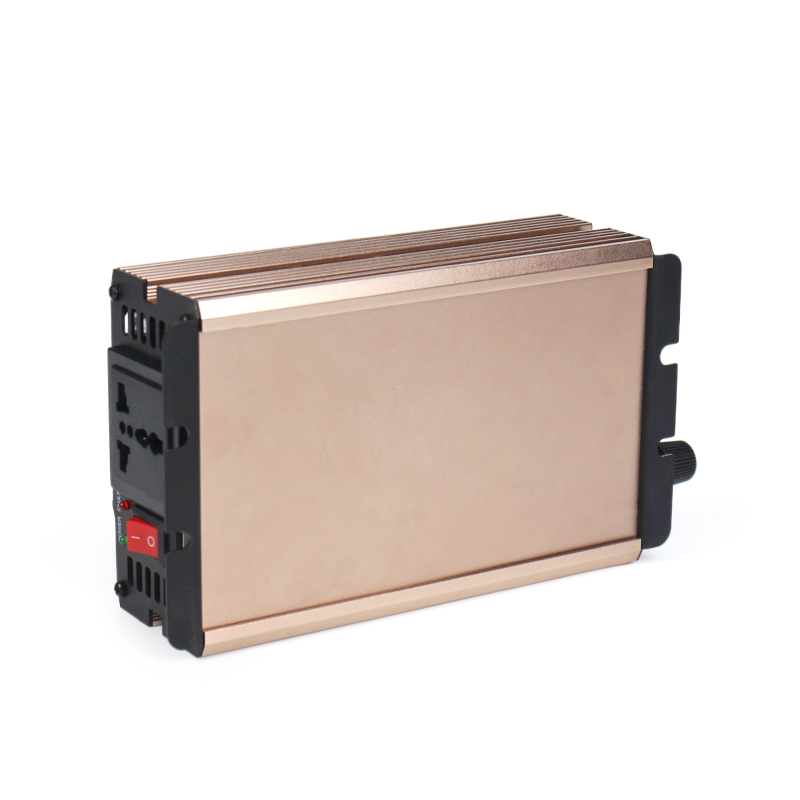

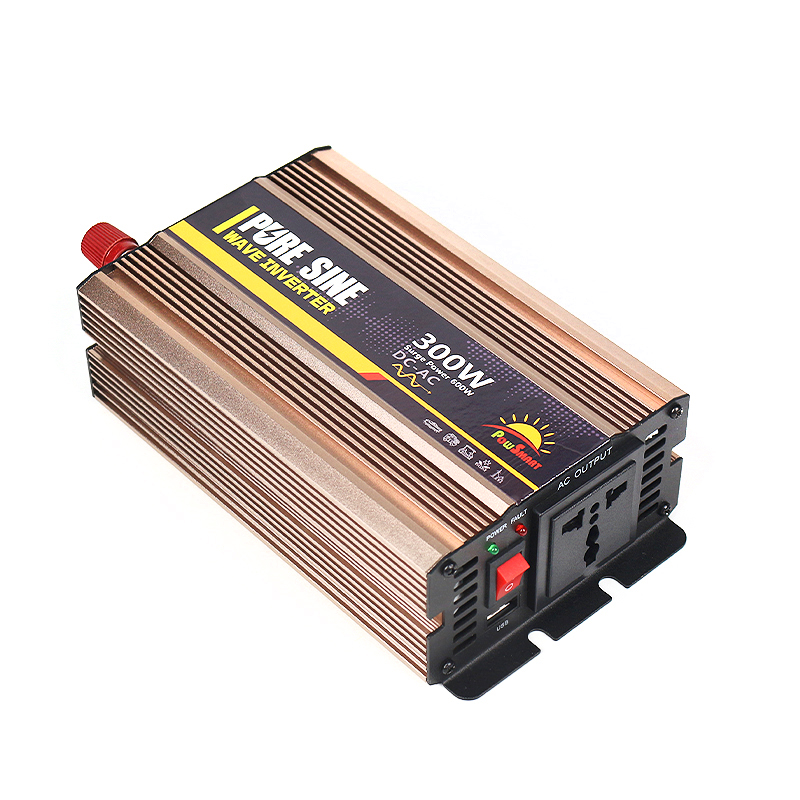

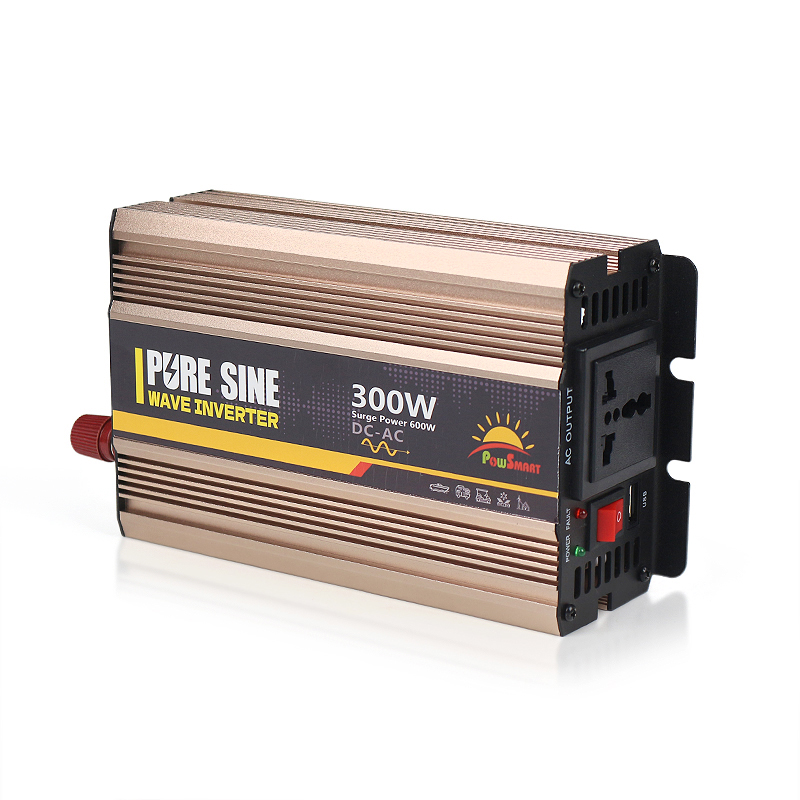

Powsmart-300W DC 12V 24V 48V AC 110V 220V Power Inverter

Powsmart-300W DC 12V 24V 48V AC 110V 220V Power Inverter

The pure sine wave inverter is a high-performance power conversion device that transforms direct current (DC) into alternating current (AC) with a pure sine wave output.

Overview
Related Products

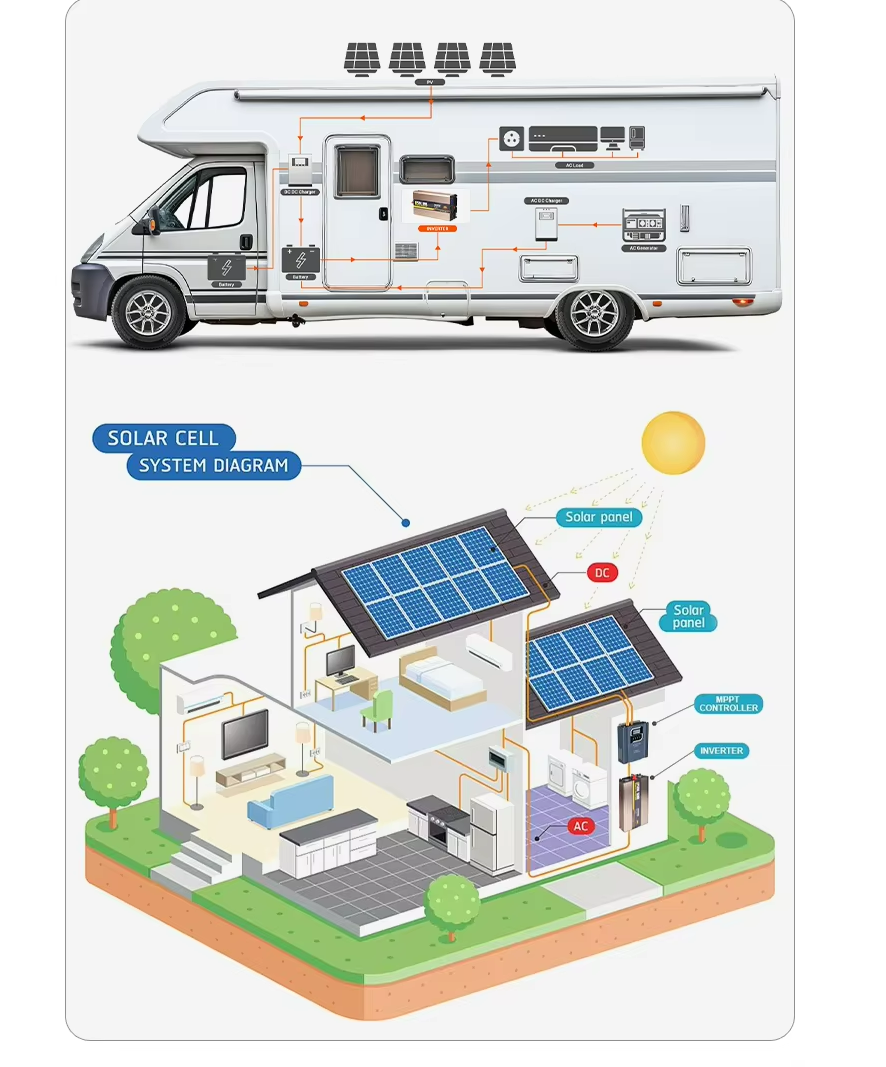

The pure sine wave inverter is a high-erformance power conversion device that transforms direct current (DC) into alternating current (AC) with a pure sine wave output. It is designed to replicate the sinusoidal waveform of utility power, ensuring compatibility with a wide range of electronic devices and appliances. The inverter features efficient energy conversion, low harmonic distortion, and robust protection mechanisms against overload, overvoltage, and short circuits. With its compact design and user-friendly interface, the pure sine wave inverter provides a reliable and cost-effective solution for off-grid power systems, backup power supply, and mobile applications where stable AC power is required.

Product Feature：

1.·Pure sine wave output (THD＜3%)

2.100% sufficient power.

3.2 years warranty

4.Aluminum shell with good heat dissipation and strong shock resistance.

5.USB charging port: 5V ,ideally qualified for powering your phone,laptop,etc.

6.OEM and ODM are available, shell color can be customized.

7.CE/FCC/ROHS/ETL

8.EU/USA/Japan/UK/Australia/Universal socket optional

9.Intelligent fan for cooling,long use life.

10.Optional remote control and LCD display for 1000W-8000W inverters.

Model	REP300-121	REP300-241	REP300-481	REP300-122	REP300-242	REP300-482
Rated power	300W
Peak power	600W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	0.3A	0.2A	0.2A	0.3A	0.2A	0.2A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD＜3%(Linear load)
USB port	5V 1A
Max.efficiency	90%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V	40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°

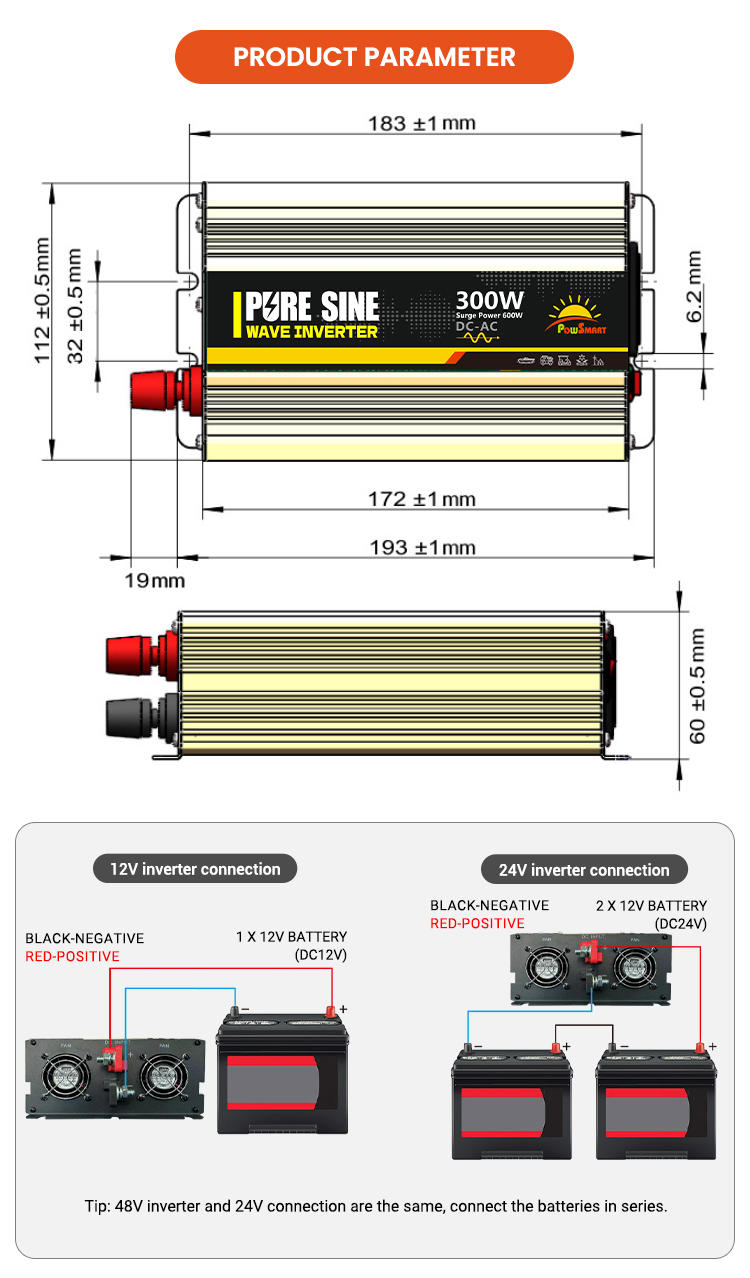

Dimension(mm)	208x112x60mm
Packing(mm)	235x145x73mm
Net./gross weight(g)	850g/1020g
QTY/Ctn	20 Pcs
Meas./Ctn(mm)	480330543mm
Gross weight/Ctn(g)	21500g
Warranty	2 years
Configuration	Standard
Cooling method	Intelligent air cooling
Custom-made available: Except for the regular DC input voltages: 12V, 24V, 48V, we also could provide customized DC input voltages: DC 36V,DC 60V,DC 72V,DC 84V,DC 96V...
