Is this a complete inverter or a board?

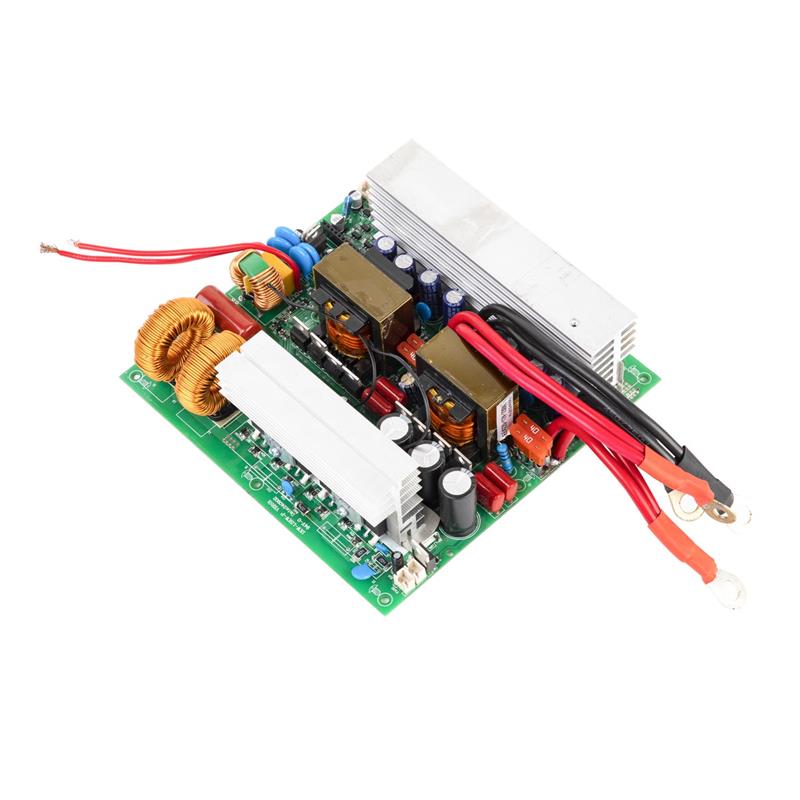

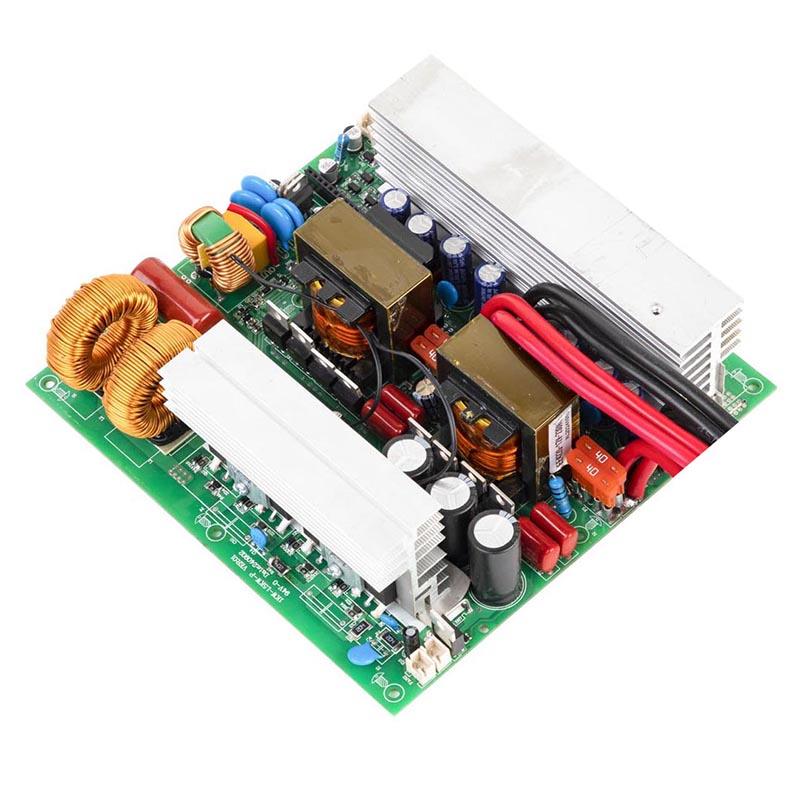

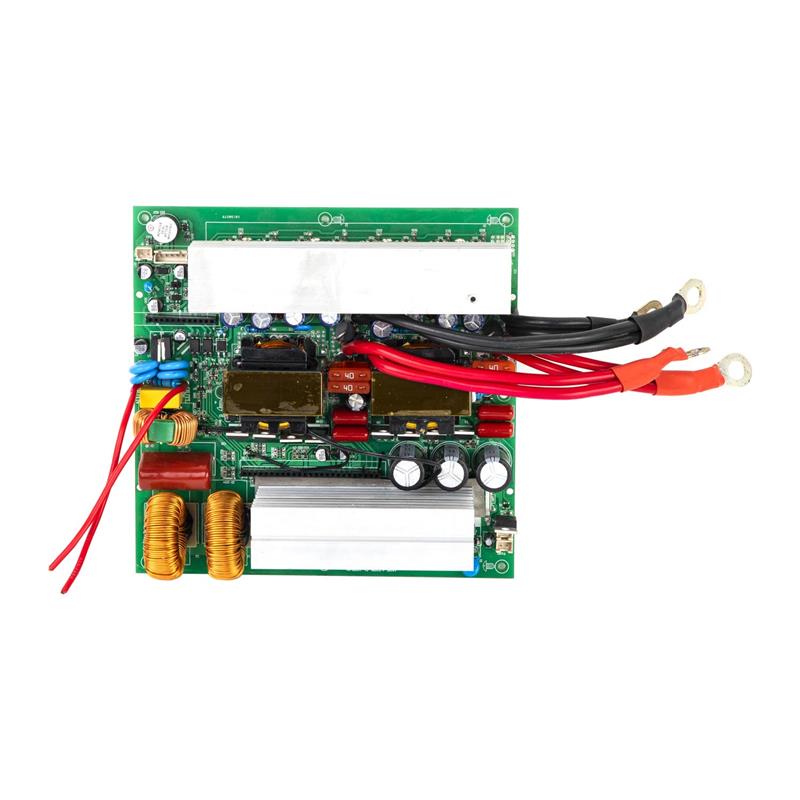

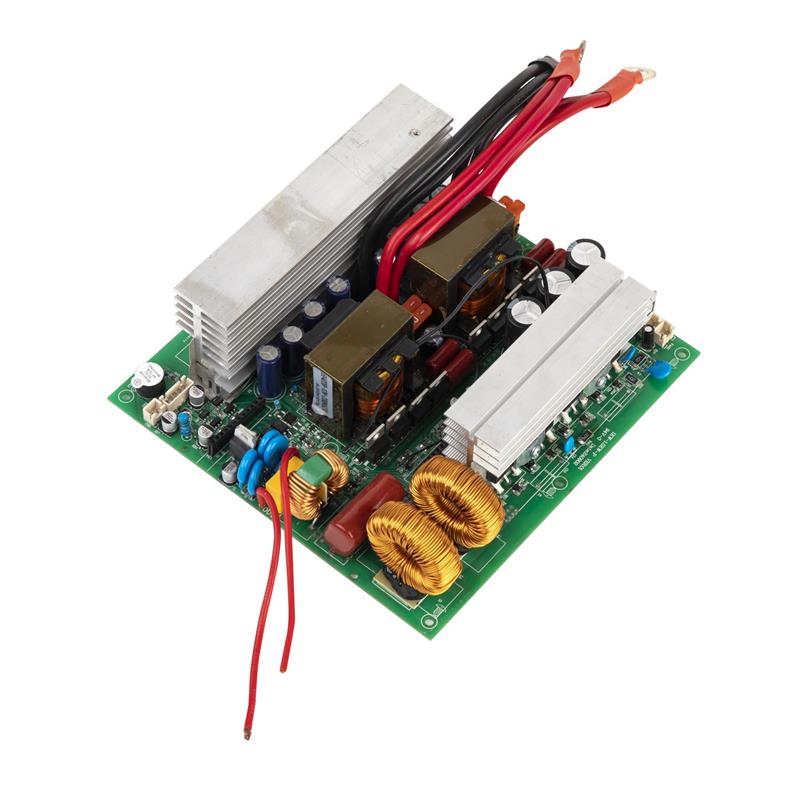

The REP-1500 is the core pure sine wave inverter PCBA board, supplied for OEM assembly into your own finished inverter. The bare board measures 175 x 170 x 70 mm. Tell us the finished specification you are building and we will confirm the board matches it.
What power and battery voltages does it cover?
This board is rated 1500W continuous with 3000W peak, in 12V, 24V and 48V versions. The wider board series runs from 500W to 8000W, so the same design family covers most inverter sizes.
What protections does the board provide?
Low-voltage alarm and shutdown, over-voltage, overload, over-temperature, short-circuit and reverse-polarity protection, with the same protection thresholds listed in the parameter table above.
What loads can a finished 1500W unit run?
Once assembled, it runs a fridge with a TV, lights and a laptop, or power tools up to about 1200W. An electric kettle only works if it is rated under 1500W, and then only on its own.
Can you support OEM production?
Yes. These boards are supplied for OEM/ODM inverter production, and custom DC input voltages can be produced on request. Tell us your target model, quantity and destination market in your enquiry.
