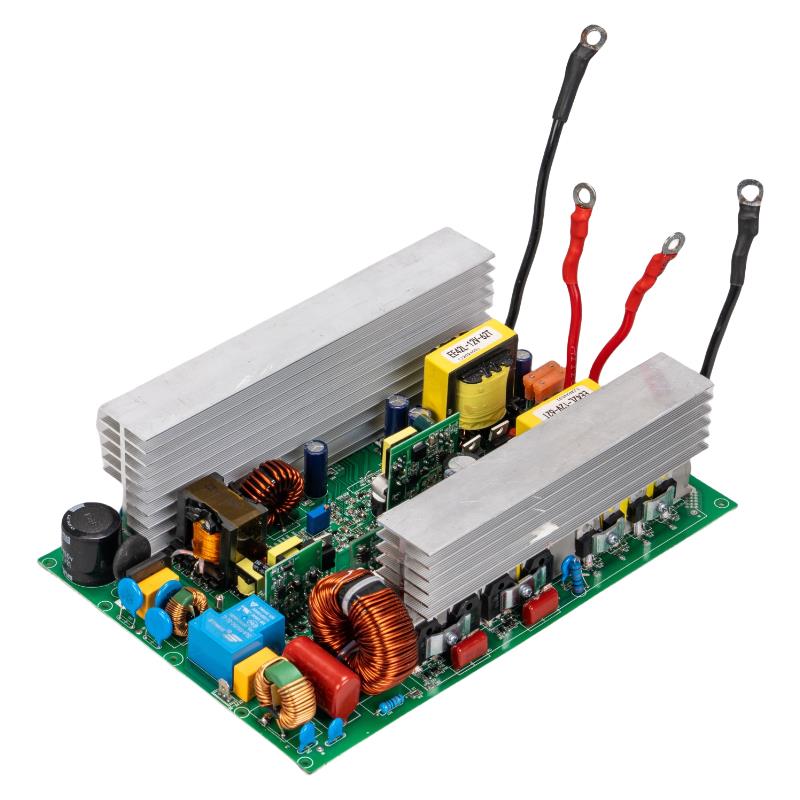

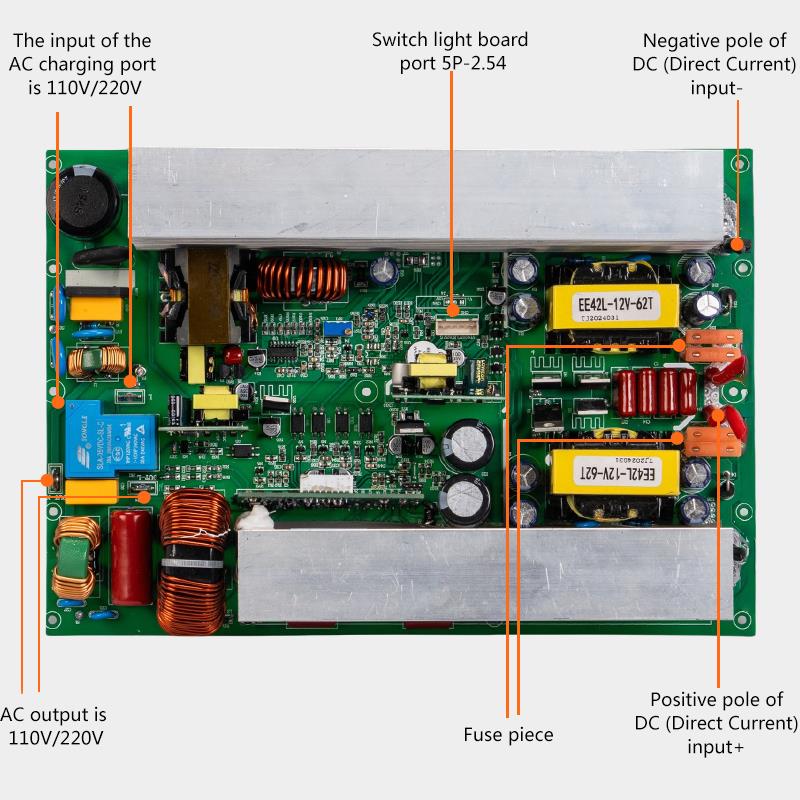

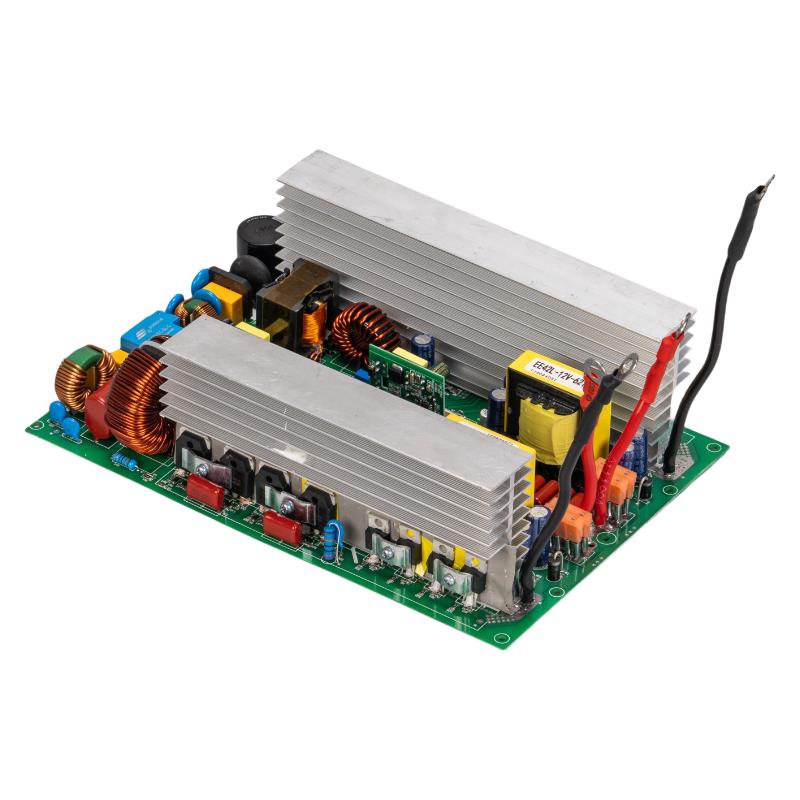

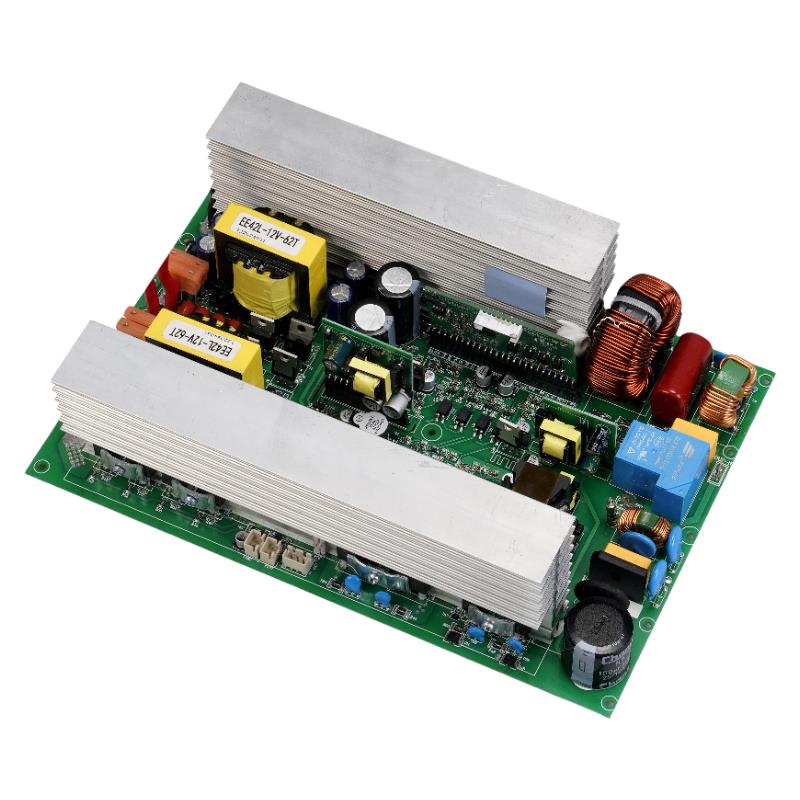

PU1500 Bidirectional Charging Inverter PCBA Board

Model		PU1500
Rated power		1500W
Peak power		3000W
Input voltage		DC12V DC24V	DC24V	DC48V
Output voltage		100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC±5%
Unload current less than		0.4A	0.3A	0.2A
Output frequency		50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform		Pure Sine Wave
Waveform distortion		THD<3%(Linear load)
Max.efficiency		90%	90%	92% 95%
Charging current		20A	10A	5A
Input voltage range		10-15.5V	20-31V	40-61V
Low voltage alarm		10.5±0.5V	21±0.5V	42±1V
Low voltage protection		10±0.5V	20±0.5V	40±0.5V
Over voltage protection		15.5±0.5V	31±0.5V	61±1V
Low voltage recover		12.3±0.5V	24±0.5V	48±1V
Over voltage recover		14.8V±0.5V	29.5V±0.5V	59V±1V
Protect function	Low voltage	Alarm at first, voltage continuously reduce. LED Red light on & shut down
	Over voltage	LED Red light on, shut down
	Over load	LED Red light on, shut down
	Over temperature	Alarm at first, tempurature continuously rise. LED Red light on & shut down
	Short circuit	LED Red light on
	Input reverse polarity	Fuse burn-out
Working temperature		—10°— 50°
Storage temperature		—30°— 70°
Dimension(mm)		24917170
Weight（g)		1660

What does bidirectional mean on this board?

The PU1500 works in both directions: it inverts battery power to AC for your loads, and it charges the battery back from AC mains. That makes it the core board for UPS-style inverters and backup systems. Ask us for the charging current of the version you need when you enquire.

What power and battery voltages does it cover?

This board is rated 1500W continuous with 3000W peak, in 12V, 24V and 48V versions. The PU board series covers 1500W, 2000W and 3000W.

What protections does the board provide?

Low-voltage alarm and shutdown, over-voltage, overload, over-temperature, short-circuit and reverse-polarity protection, with the thresholds listed in the parameter table above.

Is this a complete inverter or a board?

It is the core PCBA board, supplied for OEM assembly into your own finished bidirectional inverter or UPS unit. Tell us the finished specification you are building and we will confirm the board matches it.

Can you support OEM production?

Yes. These boards are supplied for OEM/ODM production, and custom versions can be discussed for volume orders. Tell us your target model, quantity and destination market in your enquiry.
