Is this a complete inverter or a board?

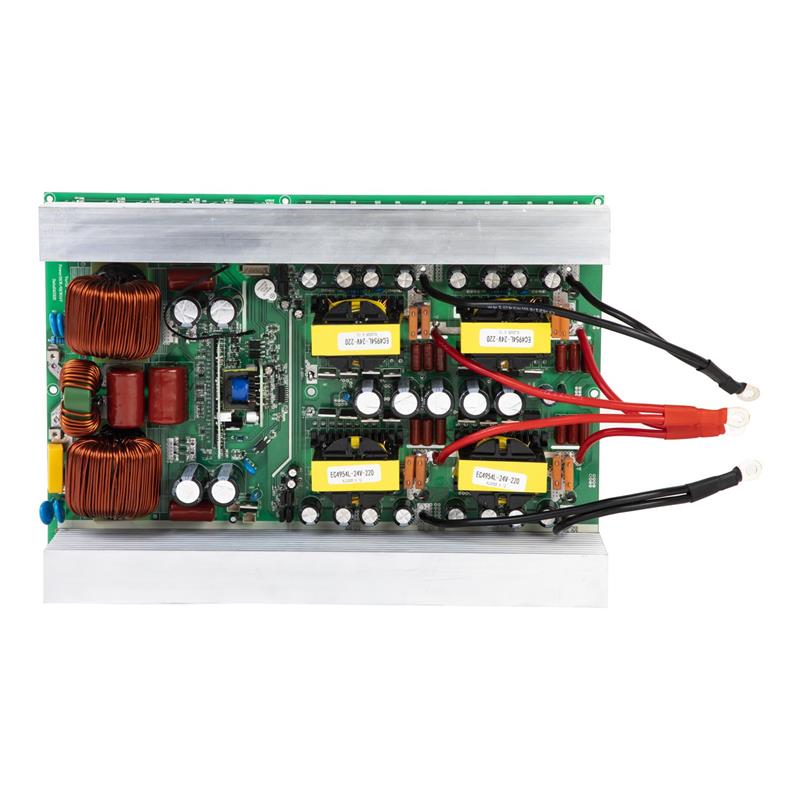

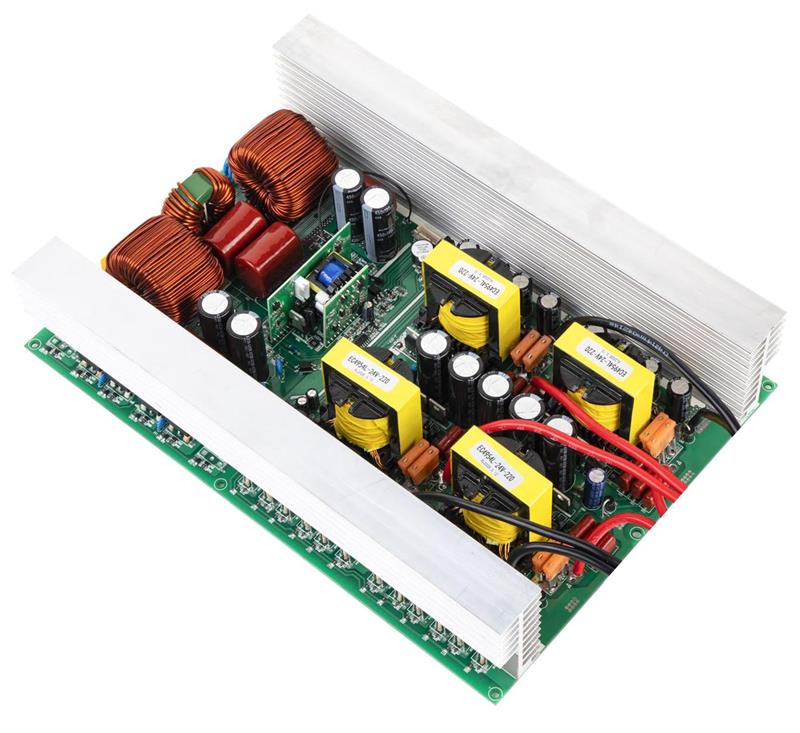

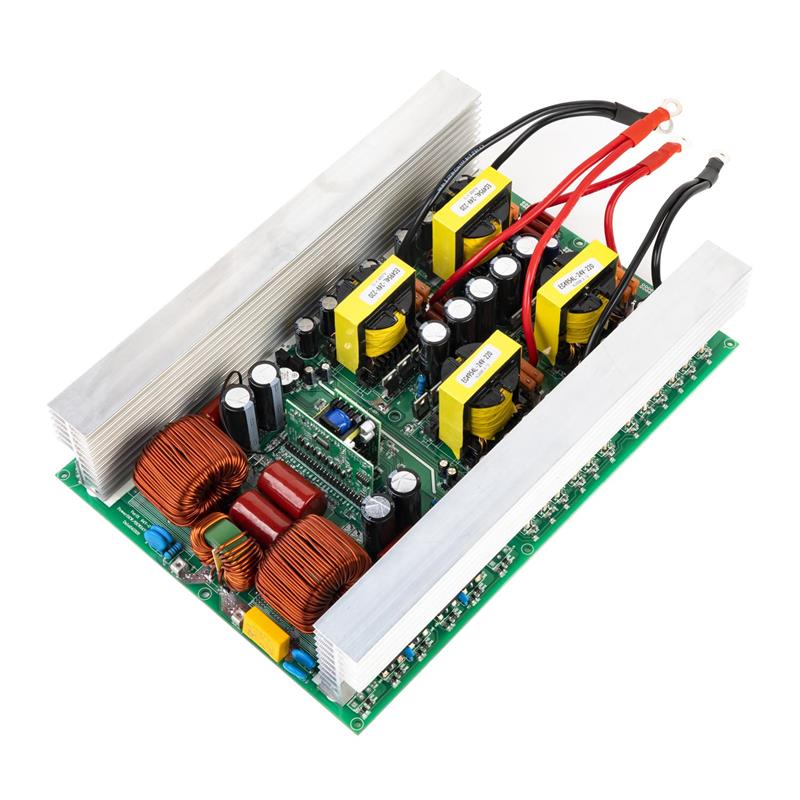

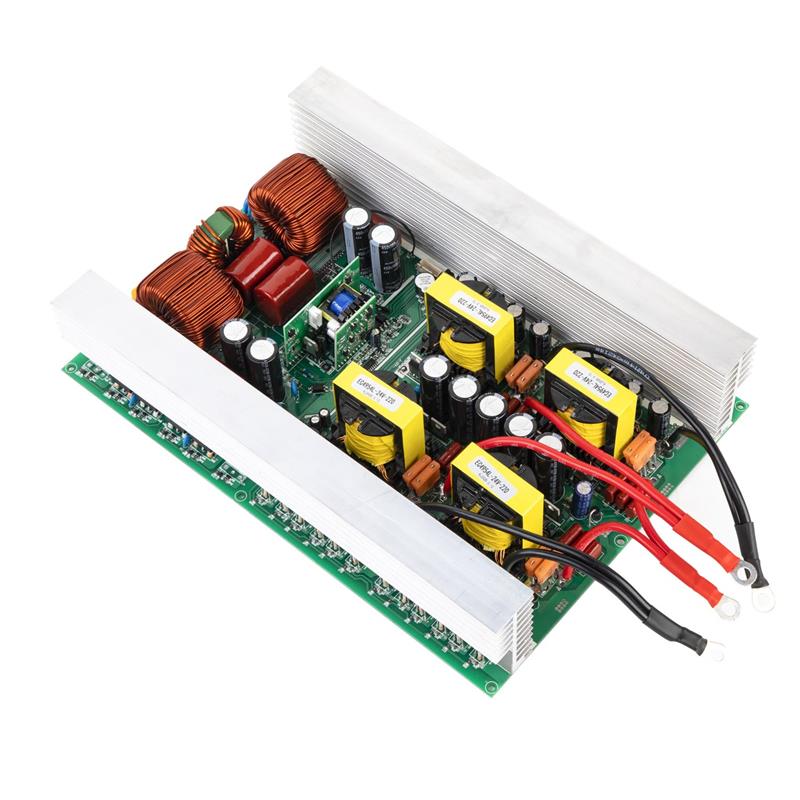

The REP-5000 is the core pure sine wave inverter PCBA board, supplied for OEM assembly into your own finished inverter. The bare board measures 322 x 230 x 70 mm. Tell us the finished specification you are building and we will confirm the board matches it.
What power and battery voltages does it cover?
This board is rated 5000W continuous with 10000W peak, in 12V, 24V and 48V versions. The wider board series runs from 500W to 8000W, so the same design family covers most inverter sizes.
What protections does the board provide?
Low-voltage alarm and shutdown, over-voltage, overload, over-temperature, short-circuit and reverse-polarity protection, with the same protection thresholds listed in the parameter table above.
What loads can a finished 5000W unit run?
Once assembled, it runs a small home or off-grid cabin: fridge, lights, TV, washing machine, water pump and an air conditioner in combinations under 5000W, with 10000W surge for motor start-up.
Can you support OEM production?
Yes. These boards are supplied for OEM/ODM inverter production, and custom DC input voltages can be produced on request. Tell us your target model, quantity and destination market in your enquiry.
